GTL 1114 Grabber Unit Garbage Truck Lifters / Cart Tippers

Product Overview

Cart Compatibility

Automated, Comb Lift, Domestic, Drums, European, Pocketed

Mounting Height

43-1/4

Application Types

Rear Load No Kick Bar, Side Load

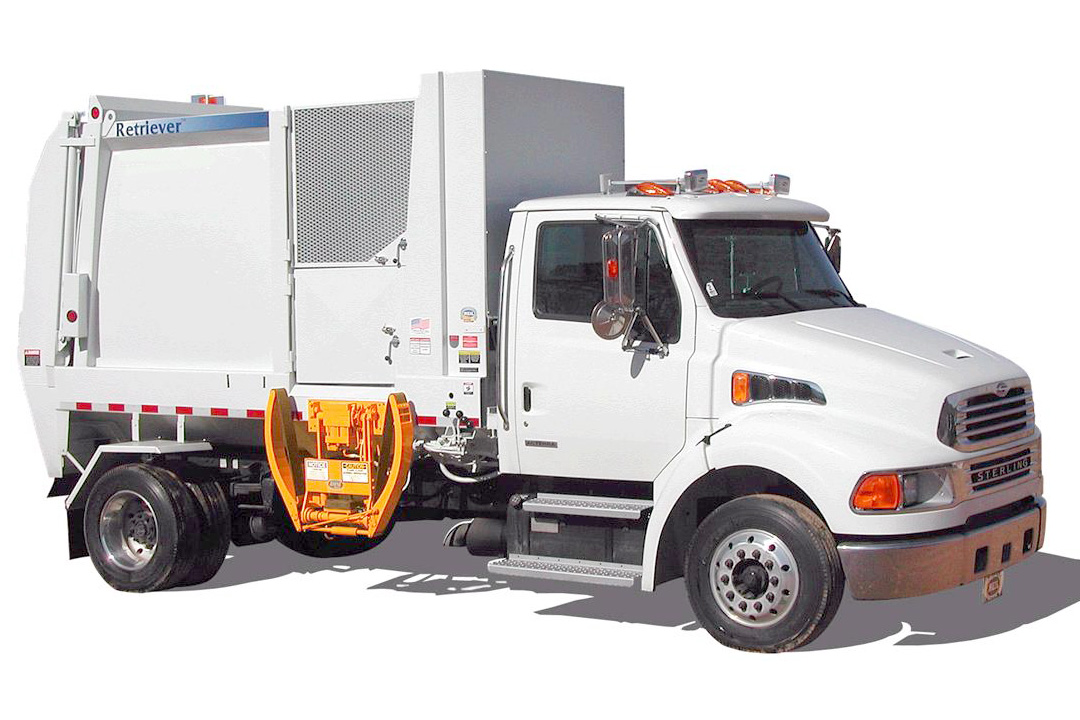

GTL 1114 Sideload Garbage Truck Lifters - Tippers

GTL 1114 Series Grabber Unit

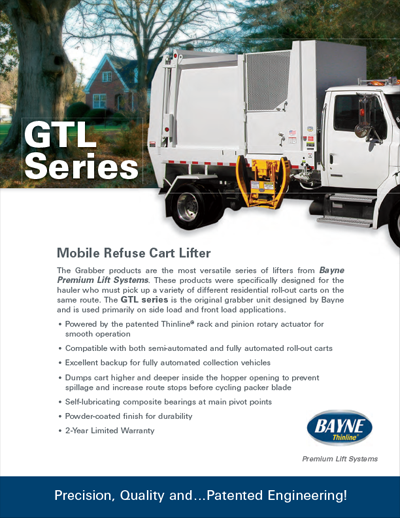

The Grabber products are the most versatile series of lifters from Bayne Premium Lift Systems. These products were specifically designed for the hauler who must pick up a variety of different residential roll-out carts on the same route. The GTL series is the original grabber unit designed by Bayne and is used primarily on side load and front load applications.

Powered by the patented Thinline^® rack-and-pinion rotary actuator for
smooth operation
Compatible with both semi-automated and fully automated roll-out carts
Excellent backup for fully automated collection vehicles
Dumps cart higher and deeper inside the hopper opening to prevent spillage and increase route stops before cycling packer panel
Self-lubricating composite bearings at main pivot points
Powder-coated finish for durability
2-Year Limited Warranty

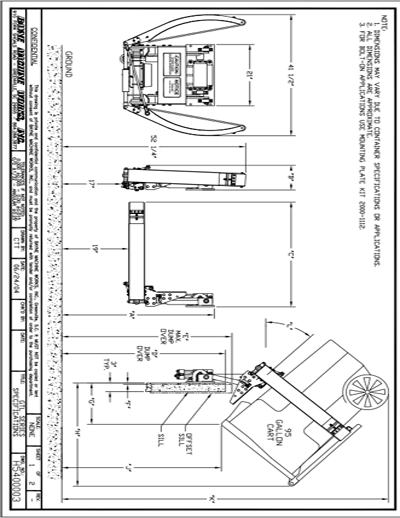

Specifications

Cart Compatibility
ANSI Z245.60-2006 Type B Carts (domestic style 2-bar)
ANSI Z245.60-2006 Type C Carts (European style)
ANSI Z245.60-2006 Type D Carts (pocketed style)
ANSI Z245.60-2006 Type G Carts (automated style)
Standard size 30 and 55 gallon drums
Lift Capacity
400 lbs @ 1800 psi
Hydraulic Pressures
Working Pressure – 1800 psi
Maximum Pressure – 2500 psi
Hydraulic Flow
2.0 – 2.5 gpm
Cycle Time
10 – 12 seconds
Bearings
Self-Lubricating Composite Material
Actuator
Patented Thinline® Rack and Pinion Rotary Actuator
Finish
Safety Yellow Powder Coating
Options
• Tap-In-Kit
• Mounting Plate Kit for Bolt-On Application
