Taskmaster High Lift Series 1999-9100 Compactor Cart Tippers

Product Overview

Cart Compatibility

Domestic

Mounting Height

48

Application Types

Compactor

Taskmaster Garbage Truck Cart Tippers - Lifters

Leach Garbage Truck Cart Lifters - Tippers

Dual Garbage Truck Cart Lifters - Tippers

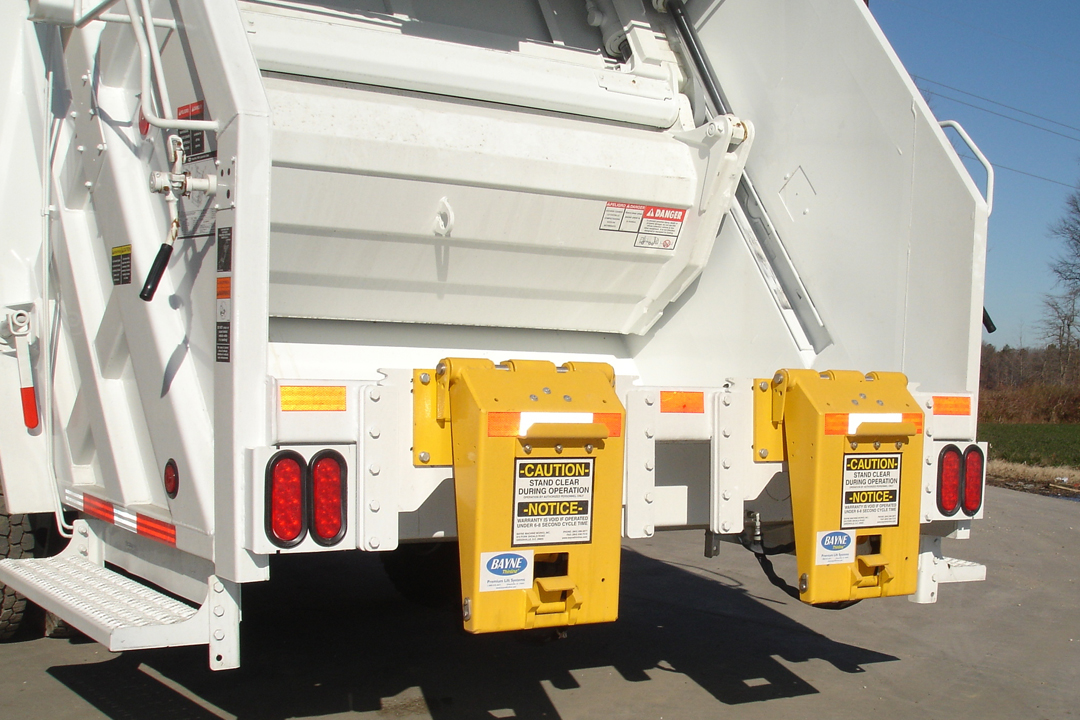

The Taskmaster cylinder lift from Bayne Premium Lift Systems was designed for the hauler who is looking for an economical, quality-built cart lifter. In addition to collection vehicles, the Taskmaster can be mounted on a stationary frame or compactor to offer a safety conscious solution for a wide variety of material handling applications.

Compatible with standard domestic style 2-bar roll-out carts
The Thinline^® design works in conjunction with most commercial container
latch kits
Break-away feature to minimize damage when properly mounted
Solid hook drive mechanism automatically secures the cart to the lift plate
during the dump cycle
Welded cylinder with replaceable seals
Will not interfere with packer panel
Self-lubricating composite bearings at all pivot points
eliminate the need for greasing
Powder-coated finish for durability
1-Year Limited Warranty

Specifications

Cart Compatibility
ANSI Z 245.60-2006 Type B Carts (domestic style 2-bar)
Lift Capacity
550 lbs @ 1800 psi
Hydraulic Pressures
Working Pressure – 1800 psi
Maximum Pressure – 2500 psi
Hydraulic Flow
2.0 – 2.5 gpm
Cycle Time
6 – 8 seconds
Bearings
Self-Lubricating Composite Material
Cylinder
Welded Construction with Replaceable Seals
2.5” Bore x 6” Stroke
Finish
Safety Yellow Powder Coating
Options
• Tap-In-Kit • Mounting Plate Kit for Bolt-On Application • Commercial Container Bumper Kit
