Cart Compatibility
DomesticMounting Height
39Application Types
Rear Load No Kick Bar, Side Load
The Taskmaster cylinder lift from Bayne Premium Lift Systems was designed for the hauler who is looking for an economical, quality-built cart lifter. In addition to collection vehicles, the Taskmaster can be mounted on a stationary frame or compactor to offer a safety conscious solution for a wide variety of material handling applications.
- Compatible with standard domestic style 2-bar roll-out carts
- The Thinline® design works in conjunction with most commercial container latch kits
- Break-away feature to minimize damage when properly mounted
- Solid hook drive mechanism automatically secures the cart to the lift plate during the dump cycle
- Welded cylinder with replaceable seals
- Will not interfere with packer panel
- Self-lubricating composite bearings at all pivot points eliminate the need for greasing
- Powder-coated finish for durability
- 1-Year Limited Warranty
-
Cart Compatibility
ANSI Z 245.60-2006 Type B Carts (domestic style 2-bar) -
Lift Capacity
550 lbs @ 1800 psi -
Hydraulic Pressures
Working Pressure – 1800 psi
Maximum Pressure – 2500 psi -
Hydraulic Flow
2.0 – 2.5 gpm -
Cycle Time
6 – 8 seconds -
Bearings
Self-Lubricating Composite Material -
Cylinder
Welded Construction with Replaceable Seals
2.5” Bore x 6” Stroke -
Finish
Safety Yellow Powder-Coating -
Options
• Tap-In-Kit • Mounting Plate Kit for Bolt-On Application
Taskmaster Spec Sheet

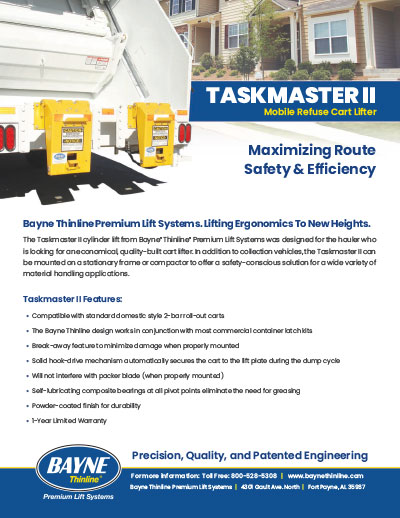

Taskmaster Brochure
